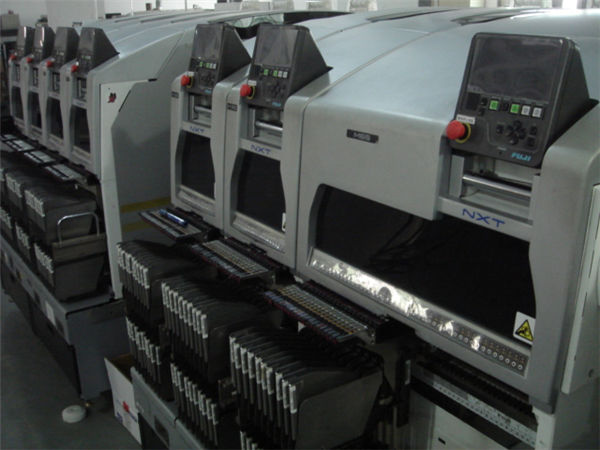

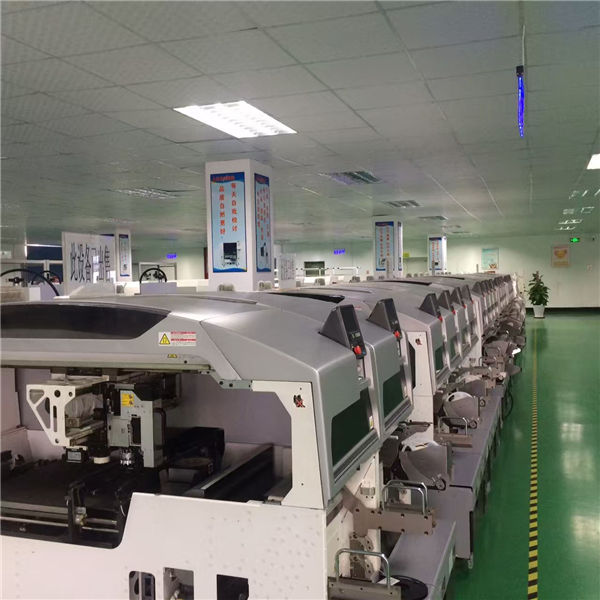

Fuji NXT Scalable Placement Platform
Category: PANASONIC  Publish Time: 2016-03-05 12:10

Fuji NXT Scalable Placement Platform
The NXT is not simply a placing machine, but is the result of Fuji’s endeavor to provide arevolutionary new SMT line concept system, providing a total solution for the requirements of the next generation, today.

FUJI  NXT MODEL

Items
Specifications
Parts
 Part size
 0603 ~ 74 x 74 mm (32 x 180):Limitations apply based on placing head (see later)

Max part height
 6.5 mm (25.4 mm): Limitations apply based on placing head  (see later)

Tape size
 JEITA(formerly EIAJ), JIS standard tape parts
8 mm tape: 13 inch reels or smaller
12 ~ 88 mm tape: 15 inch reels or smaller

Stick feeders
 4 £ stick width £ 15 mm
15 £ stick width £ 32 mm

Tray units

136 x 322.6 (JEDEC standard) (When using tray feeders

335 x 330 mm (When using tray units)


Other
 JIS, JEITA(formerly EIAJ) standard tape parts, stick parts, tray parts
etc.
(Parts supported by EIA standard also supported by JEITA(formerly
EIAJ)
Placing accuracy
± 0.04mm: 3s, ± 0.08mm: 6s [Chips (including 0603 (0201))]
± 0.025mm: 3s, ± 0.05mm: 6s [Leaded parts]
Note:
1. Fiducial mark based referencing.
2. The placing accuracy above is based on tests conducted at Fuji.
3. Depending on the parts and the PCB fabrication accuracy, it
may not be possible to guarantee the above placing values.
Placing reliability
99.99% (including automatic recovery)
Fiducial mark reading time
0.25 sec./mark Obtained when reading a 1.2 mm diameter mark, excluding the time required to travel from mark to mark, and to make adjustments for
mark shape variations and location errors
